Red Oak Fabrication provides precision metal forming, press brake bending, and automated sawing services. We deliver total bending force up to 350 tons and bed lengths up to 14 feet, forming heavy plate channels on the big brakes and thin-gauge sheet parts at speed on the small cells. CNC back gauges and dynamic crowning hold each bend to a tight angle, run after run.
Our fleet pairs high-tonnage plate capacity with quick, small-part cells. Here is the full list.
| Press Brake & Equipment | Capacity | What it covers |
|---|---|---|
| Bystronic Xpert 320 Primary heavy | 350 tons | 14′ (168″) | Dynamic hydraulic crowning, multi-axis backgauge, heavy plate bending. |
| Bystronic Xpert 320 Secondary heavy | 350 tons | 13′ 6″ (162″) | Precision deep-box forming, high-tonnage structural channels and angles. |
| Bystronic Xpert 80 Cell 1 | 80 tons | 5′ (60″) | Compact high-speed bending cell for complex sheet metal brackets. |
| Bystronic Xpert 80 Cell 2 | 80 tons | 5′ (60″) | Rapid-setup cell for high-volume short-to-medium components. |
| Horizontal Hydraulic Press | 80 tons | Horizontal Bed | Heavy bar stock bending, profile straightening, thick ring and busbar forming. |
| Automated Industrial Bandsaws | Automated Bundle Capacity | Production cut-off, precise miter cutting, heavy structural stock prep. |

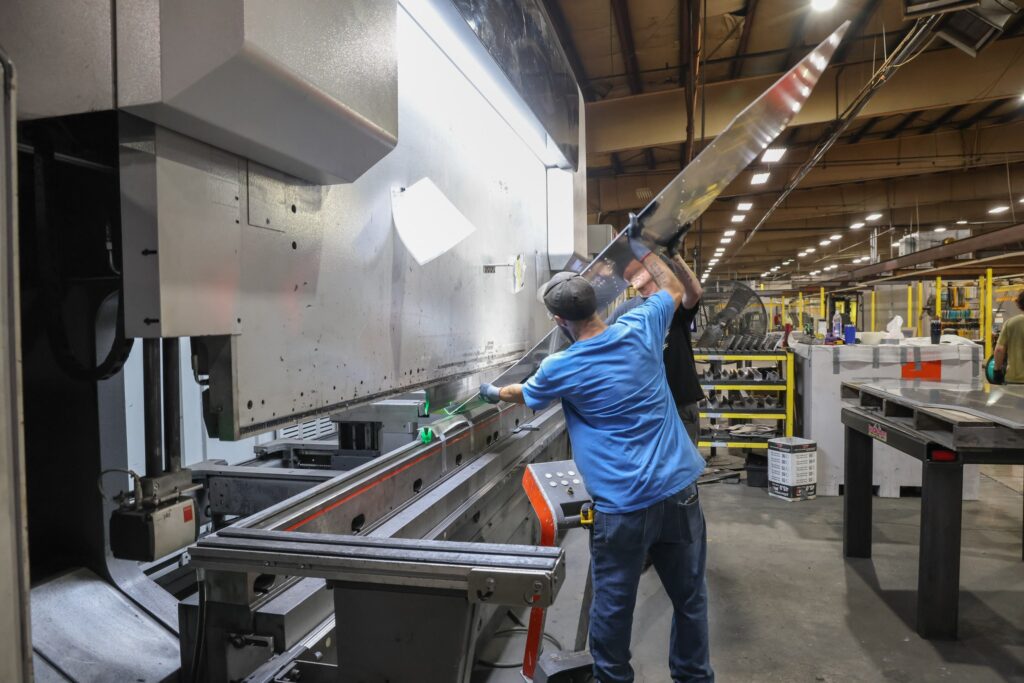

Our two 350-ton Xpert 320 brakes form thick carbon steel, stainless, and aluminum plate. Beds up to 14 feet let us bend long channels, frame members, and full panels in one setup. That cuts out extra weld seams. It also cuts cost.

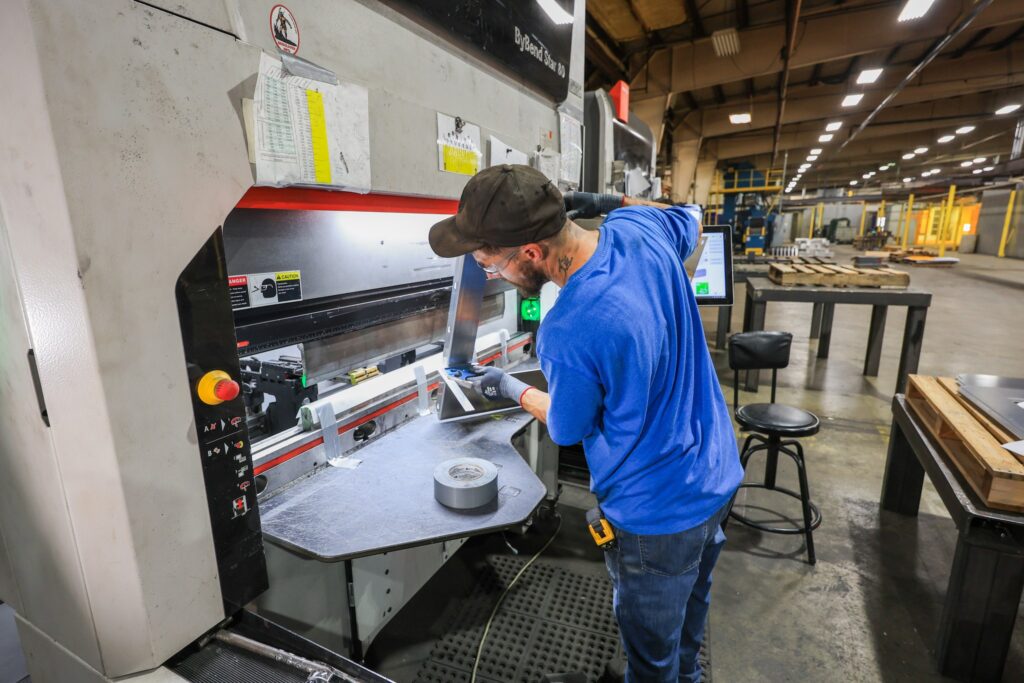

Our two 80-ton Xpert 80 brakes move fast. The ram is quick and tools change in minutes. These 5-foot beds are built for brackets, chassis parts, and small sheet blanks. Most of those blanks come straight from our laser cutting cells.
We do more than vertical brake work. We also press and prep stock.

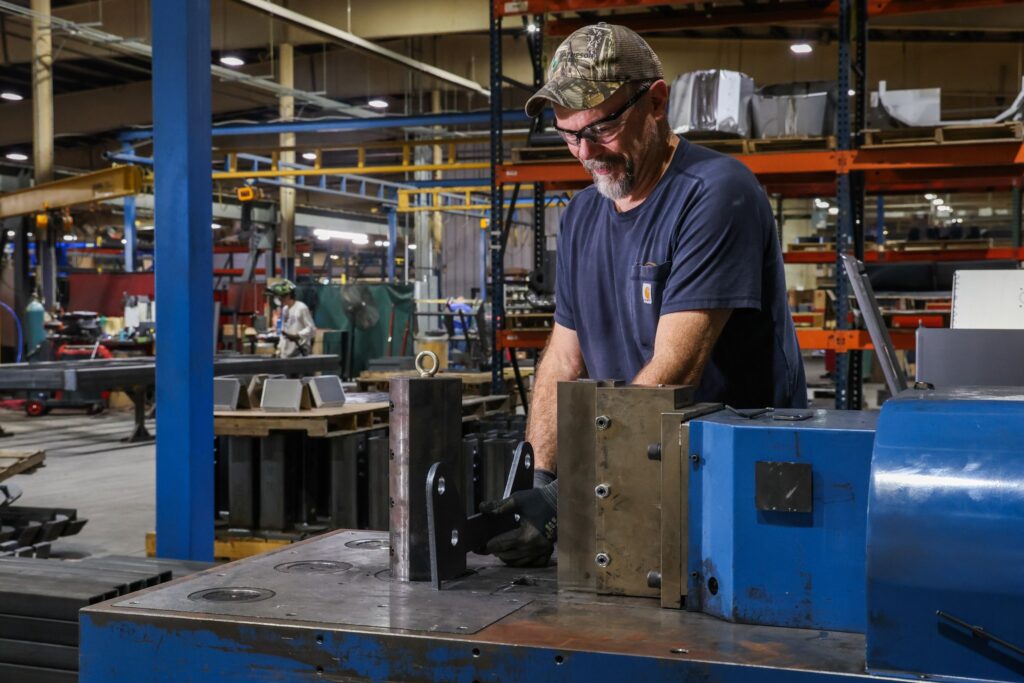

Our 80-ton horizontal press provides unique force application along the horizontal plane. It is specifically designed for:
Raw tube, channel, and bar come through our saw department first. Our automated bandsaws cut bundles, straight ends, and clean miters. Parts then move right to forming or welding.

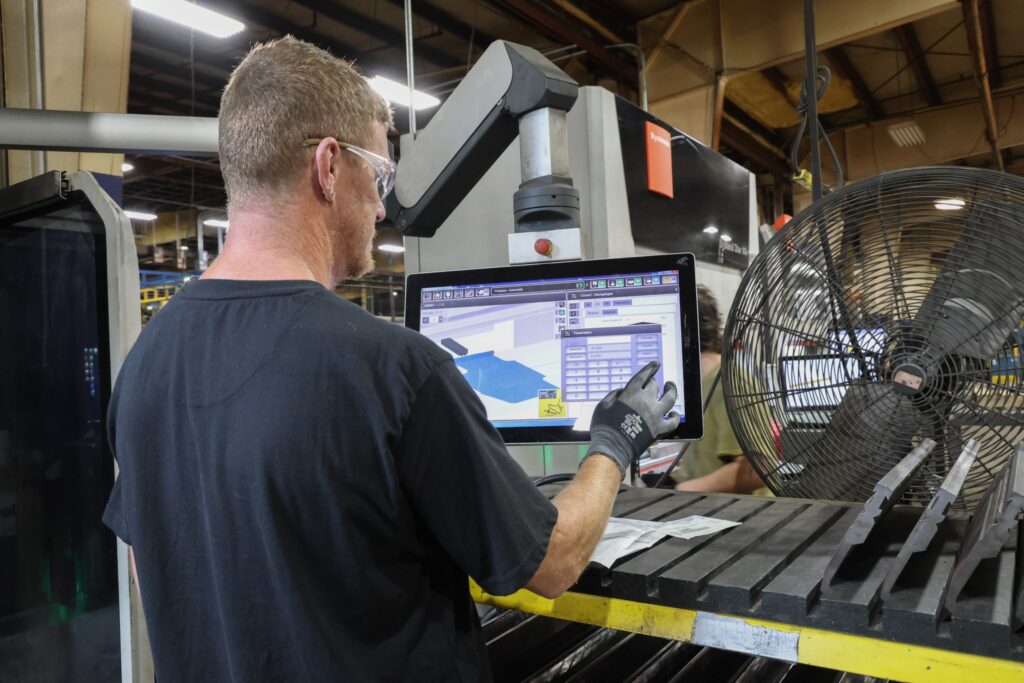

A tight angle takes active control during the bend. Our brakes correct for it as they run.
The Red Oak Fabrication company utilizes four specialized facilities in Red Oak, Iowa. Together they provide comprehensive single-source metal fabrication.
Learn more about our additional turnkey metal fabrication services — Laser Cutting Services, CNC Machining & Tapping, AWS D1.1 Robotic & Manual Welding Services, and more.
Taylor runs our press brake department and came up through our drafting team, so he knows the print side as well as the brake.
We reply in 1 business day. We deliver turnkey in 4–6 weeks from PO. Send us your print — we’ll take it from there.
We reply in 1 day & deliver turnkey in 4–6 weeks from PO.
