Laser Cutting Services

Multiple Laser Systems for Precision Laser Cutting in Iowa

For mid-sized OEMs, structural fabricators, and heavy equipment manufacturers across the Midwest.

Red Oak Fabrication provides precision CNC laser cutting services. Laser cutting serves as the foundational cornerstone for 90% of our custom manufacturing builds, feeding directly into our secondary bending, AWS certified welding, and powder coating lines. Across our laser systems we process heavy plate stock, thin-gauge sheet metal, structural tubing, and open profiles with extreme accuracy and zero tooling wear.

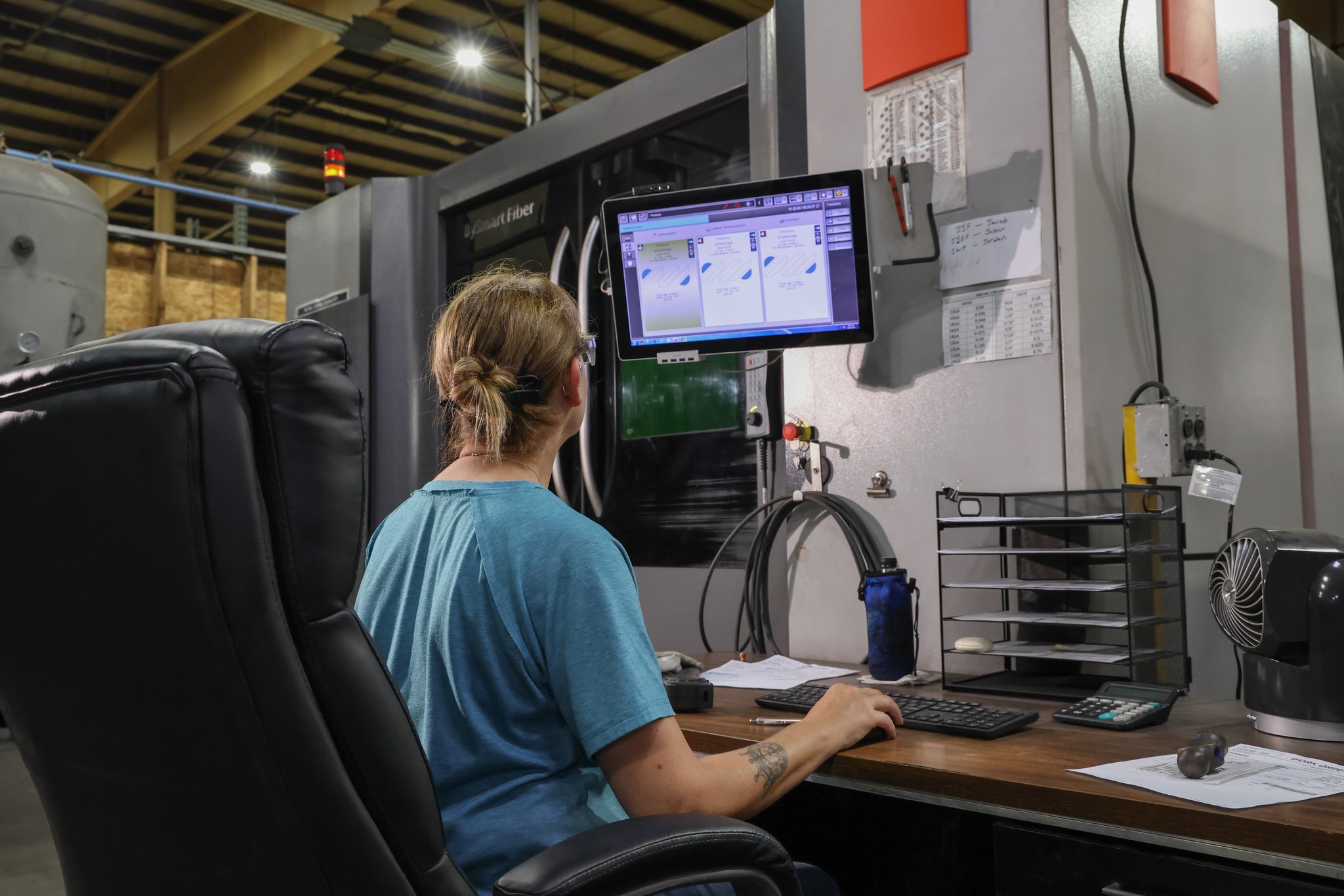

Operator running a laser cutting job from the machine control station

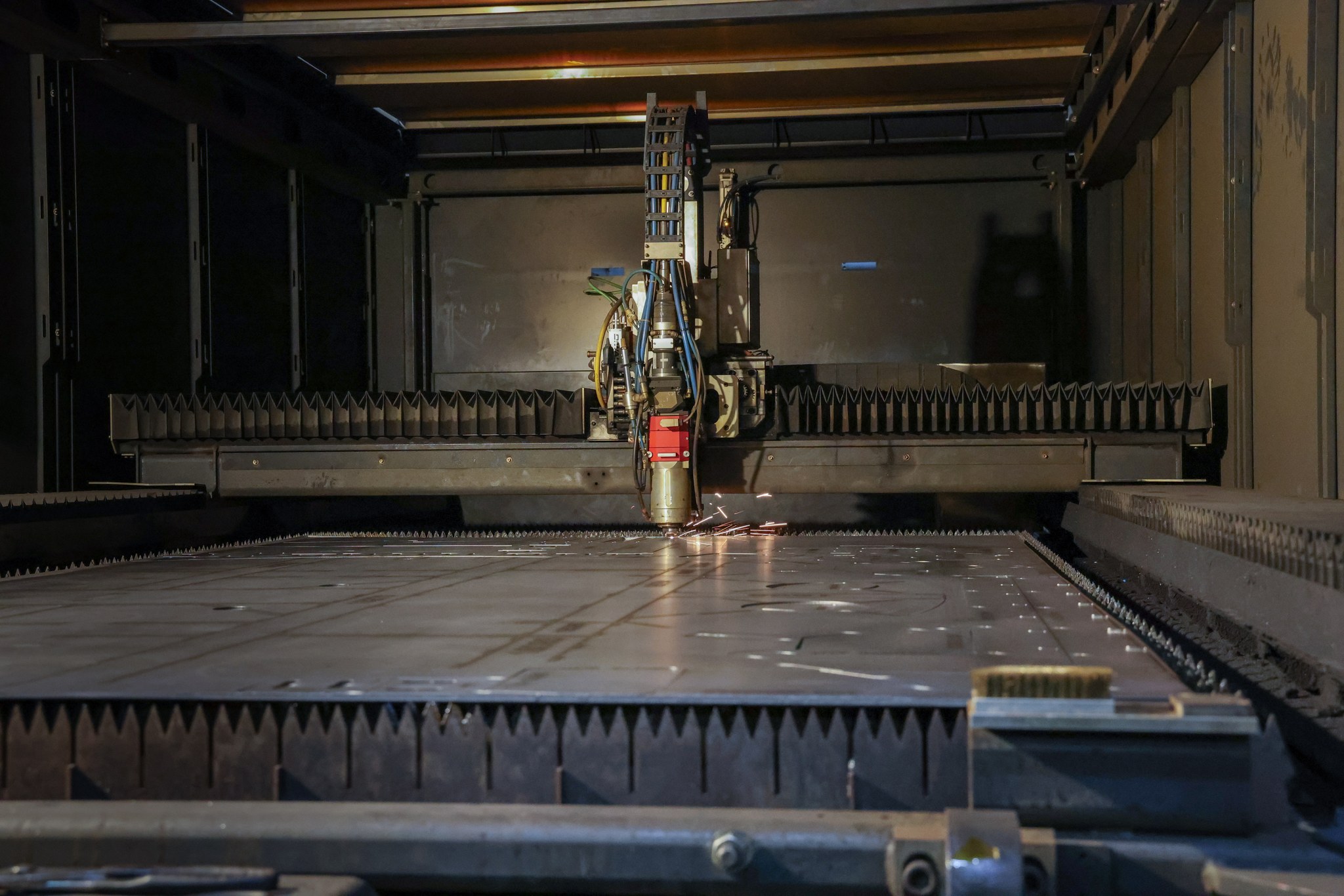

Laser cutting head cutting sheet metal on a flatbed laser

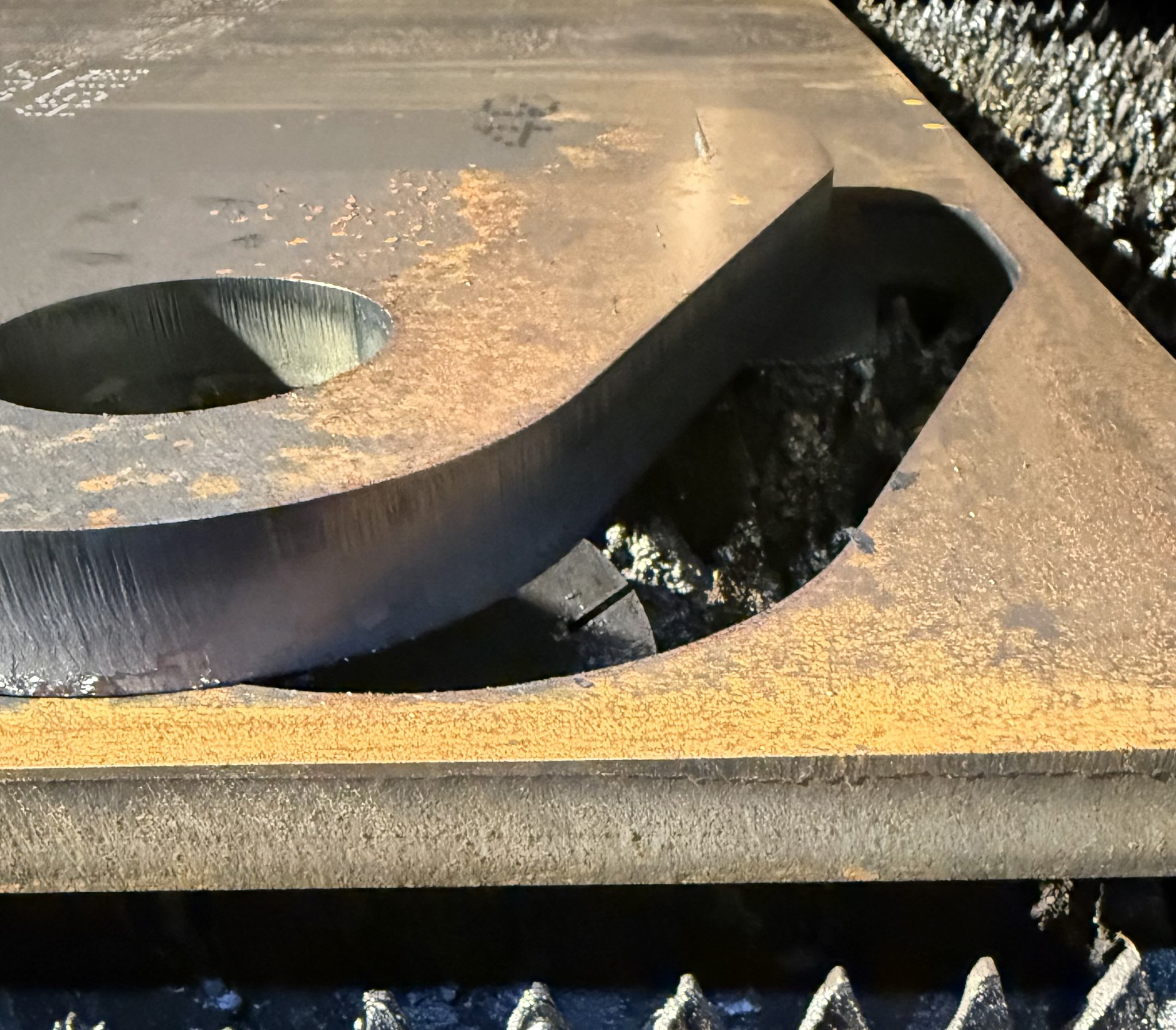

Close-up of a laser-cut edge on thick steel plate

Red Oak Fabrication's Capabilities

We operate multiple CNC laser cutting systems for flat sheet, heavy plate, and 3D structural tube cutting.

2.0″

Carbon Steel

1.18″

Stainless Steel

1.18″

Aluminum

80″ x 160″

Sheet Envelope

0.75–12″

Tube Diameter

20 kW

Max Laser Power

Dual Laser Processing Capabilities

Flat Sheet & 3D Structural Tube

Red Oak Fabrication organizes its laser cutting department into two specialized, high-capacity divisions:

CUT: 2D Sheet + Plate

2D High-Power Sheet & Plate Fiber Laser Cutting

Our 20 kW, 10 kW and 6 kW fiber lasers deliver extreme cutting speeds, narrow kerf widths, and clean edge quality across a broad range of material thicknesses.

20,000-Watt Cutting Power Pierces heavy carbon steel plate up to 2.0 inches (50 mm) thick with minimal heat-affected zones.
Linear Motor Dynamics 4.2 G acceleration rates and positioning repeatability within ±0.015mm ensure extreme part consistency.

Learn about our Fiber Laser Cutting

CUT: 3D Tube + Profile

3D Multi-Axis Structural Tube & Profile Laser Cutting

Our Bystronic M3 FL300 system transforms raw structural piping, tubing, and open profiles into ready-to-weld components.

3D Bevel Head Performs 45° miter cuts, countersinks, and weld-prep bevels in a single automated pass, eliminating secondary grinding.
Broad Profile Geometry Handles round tubing, square HSS, rectangular tubing, C-channel, H-beams, and L-angle iron from 0.75″ to 12″ in diameter.
Advanced Quality Sensors Integrated LaserScan technology compensates for material warping, while Optical Seam Detection keeps cuts away from raw weld seams.

Learn about our Tube Laser Cutting

Equipment & Specifications

Equipped with three types of laser systems, we process heavy plate stock, thin-gauge sheet metal, structural tubing, and open profiles with extreme accuracy and zero tooling wear.

Machine	Working envelope	Key material & process strengths
Cutlite Penta FAST 4020 20 kW IPG fiber	80″ x 160″	Heavy steel plate up to 2.0″, ultra-fast light-gauge blanking, 4.2 G acceleration
BySmart Fiber 3015 10 kW CNC fiber	60″ x 120″	High parts output in thin to medium sheet thicknesses
Bystronic BySmart 3015 6 kW CNC fiber	60″ x 120″	Precision sheet blanks — stainless, aluminum, brass, copper; rapid setup
Bystronic M3 FL300 4 kW 3D tube laser	0.75–12″ dia. / 41 ft stock	3D 45° beveling, tab-and-slot jointing, HSS tubing, channels, angles
