Red Oak Fabrication provides multi-axis 3D and 2D CNC tube laser cutting services. Using our Bystronic M3 FL300 heavy-duty laser system, we process large round tubing, square and rectangular structural section, and open structural profiles. Our 3D laser head creates self-fixturing joints, tab-and-slot designs, and weld prep in one pass — so you skip downstream sawing, drilling, and coping.

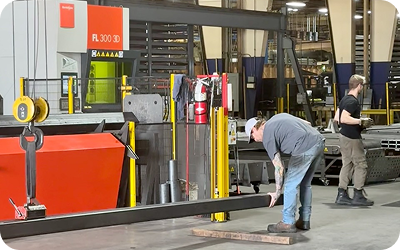

Our Bystronic M3 FL300 is set up for steady, automated runs on heavy-wall pipe and structural profiles. Bundle loaders and automated chain feeders keep it running unattended, while a triple-chuck drive prevents sag and chatter across long lengths.
| Machinery Feature | Technical Specification | Operational & Engineering Benefit |
|---|---|---|
| Laser Power Source | 4 kW Laser Resonator | Delivers clean edge cuts across thin wall to heavy wall steel. |
| Tube Diameter Range | 0.75″ to 12.0″ | Handles small structural tubing up to 12-inch heavy pipe. |
| Wall Thickness Range | 1/2″ mild steel 3/16″ stainless steel 1/4″ aluminum | Covers thin-wall tubing through heavy-wall structural pipe. |
| Max Material Weight | Up to 26.8 lb/ft | Processes heavy structural wall thickness without feed slippage. |
| Infeed / Outfeed Length | Up to 41.0 feet | Handles full mill-length bundle stock with minimal drop scrap. |

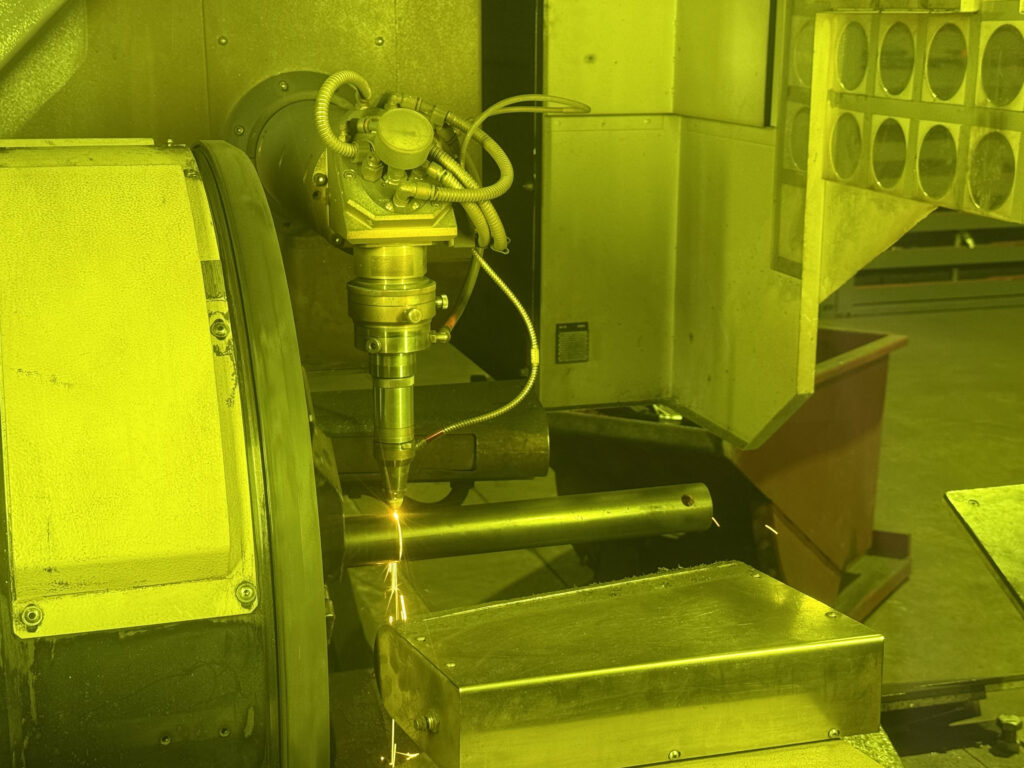

| Multi-Axis Cutting Head | 3D Head with beveling up to 45° | Executes miter cuts, countersinks, and weld-prep bevels in one pass. |
| Workpiece Stabilization | Automated Triple-Chuck Support Drive | Eliminates vibration and chatter on long, heavy tube profiles. |
| Automation Loading | Automated Chain & Front/Rear Bundle Loaders | Supports continuous unmanned lights-out production runs. |
Our machine handles far more than closed shapes. Unlike standard 2D tube cutters restricted to symmetrical closed shapes, our Bystronic M3 FL300 also cuts complex open structural shapes. Closed profiles include round tube and pipe, square HSS tubing, and rectangular HSS tubing, while open shapes include C-channel, L-angle iron, and U-profiles. Custom extrusions include oval, elliptical, and special OEM shapes.
| Closed Hollow Profiles | Open Structural Shapes | Custom Extrusions |
|---|---|---|
| Round Tube & Pipe | C-Channel | Oval |
| Square HSS Tubing | L-Angle Iron | Elliptical |
| Rectangular HSS Tubing | U-Profiles | Special OEM Shapes |
Cutting raw tubing brings challenges. These include surface deformities, material bow, and internal seam interference. The Bystronic M3 FL300 solves them with three built-in sensor systems.
Raw welded tubing contains internal seam ridges. These ridges can hurt cut quality or weaken later joints. Our high-speed camera system locates and tracks the weld seam, then rotates the cutting path so critical features avoid the seam line.
Mill-supplied tubing often shows slight bow, twist, or size drift. The LaserScan system scans the profile geometry before cutting, then adjusts the 3D laser torch path to compensate for warping.
For thin-to-medium wall thickness, QuickCut speeds up head motion and axis timing. This maximizes feed rates while it maintains linear accuracy.

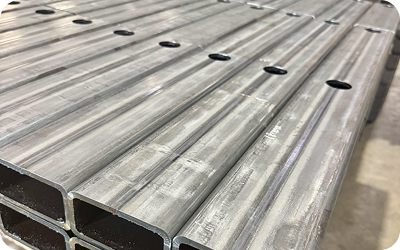

Old-school steel work needs many extra steps. We combine these steps into a single laser tube cutting program. This sharply cuts lead times and labor. Precise 3D miter and saddle cuts remove manual joint grinding. The laser also cuts bolt holes, slots, and flow-drill locations in seconds. Self Fixturing Tab-and-Slot Joints let parts interlock, which reduces weld fixture needs.
We track every Mill Test Report from intake through delivery. This proves the exact ASTM grade of each part.
We verify parts using calibrated coordinate measuring machines and precision height gauges.
Our certified welders adhere strictly to code standards and our fourth-generation family owners guide every metal fabrication line.
Our four specialized facilities in Red Oak, Iowa provide comprehensive single-source high quality metal fabrication.
Learn more about our additional turnkey capabilities — CNC Press Brake Forming, Precision Machining & Tapping, AWS D1.1 Certified Welding, Surface Preparation & Finishing, and more.
Dillon oversees the daily work within the tube laser department. Send him your print today to get a quick and easy quote.
We reply in 1 business day. We deliver turnkey in 4–6 weeks from PO. Send us your print — we’ll take it from there.
